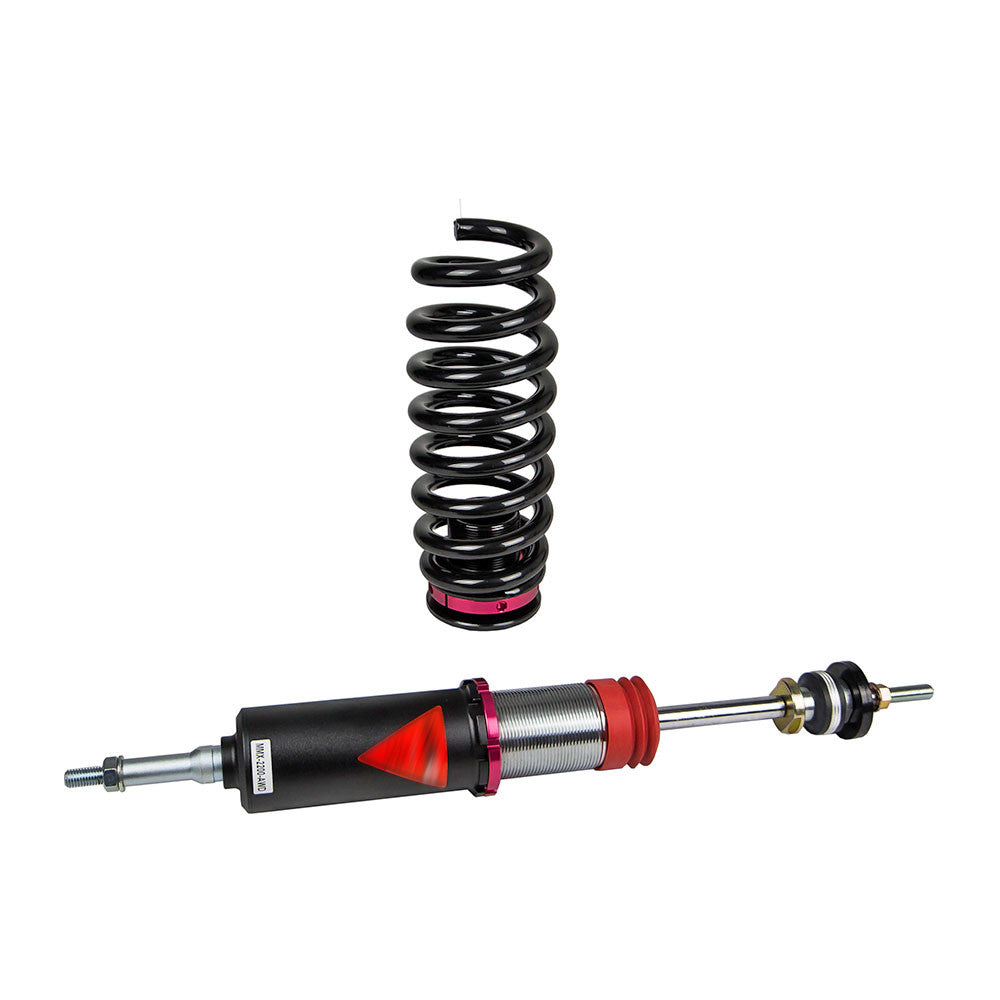

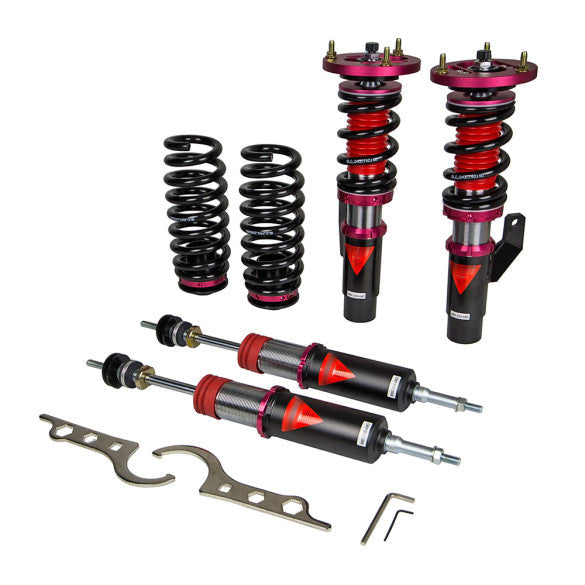

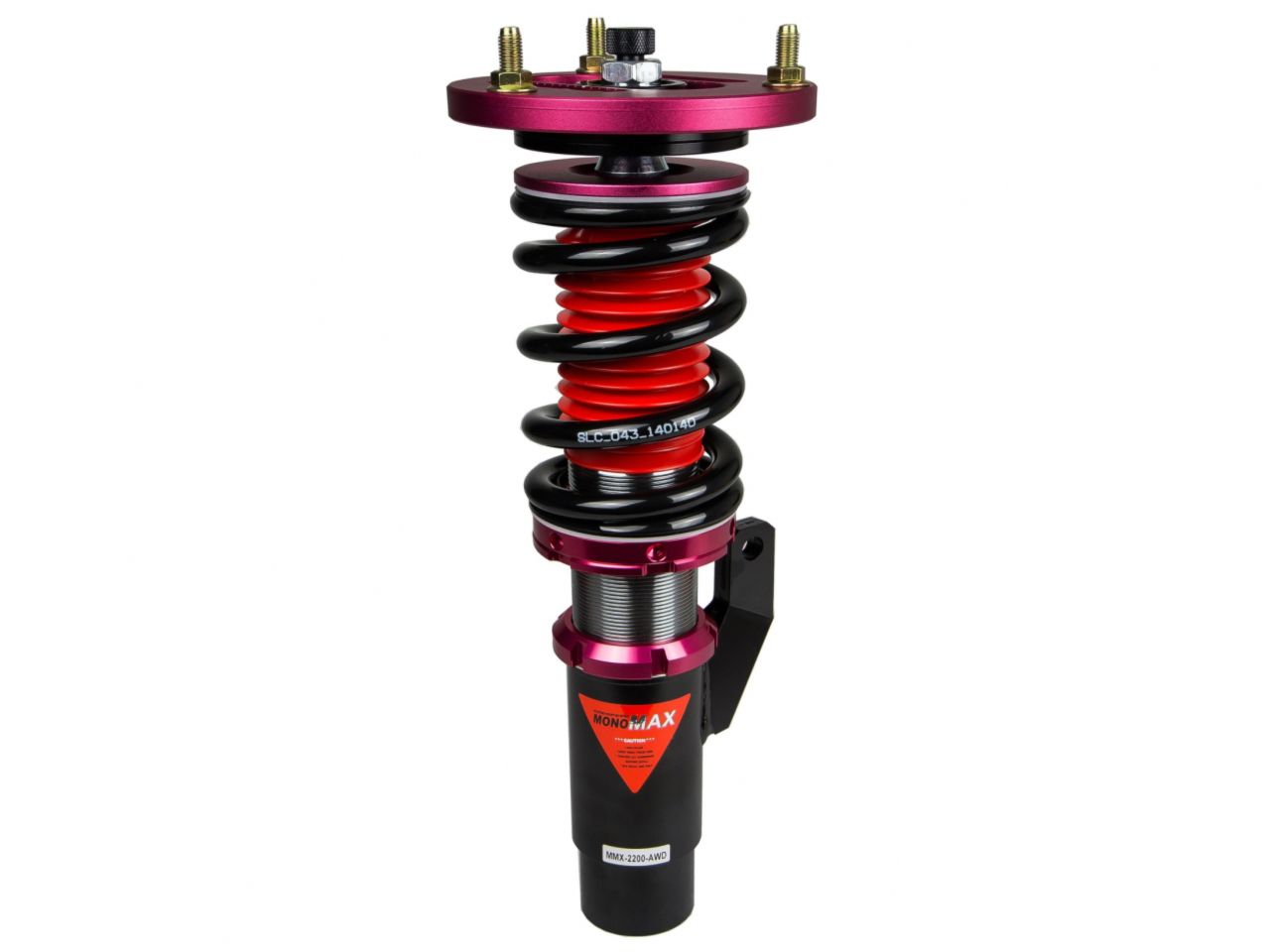

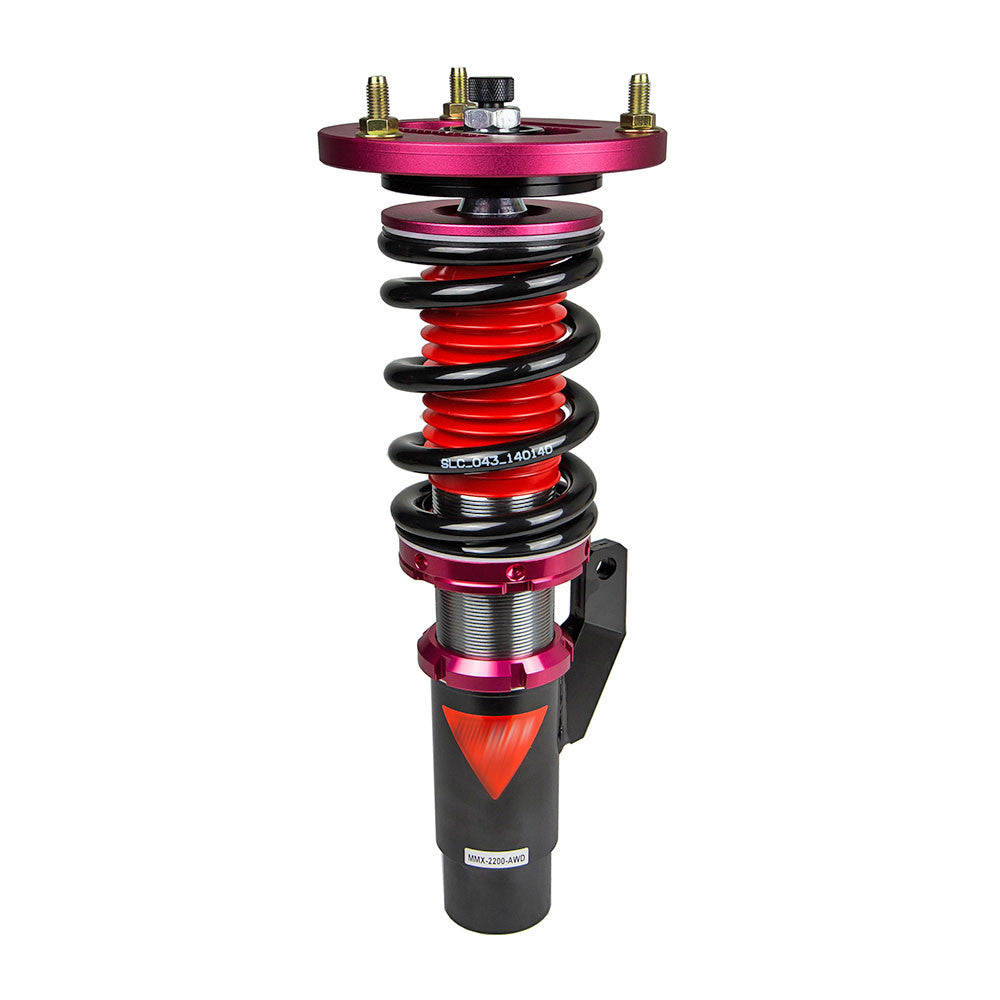

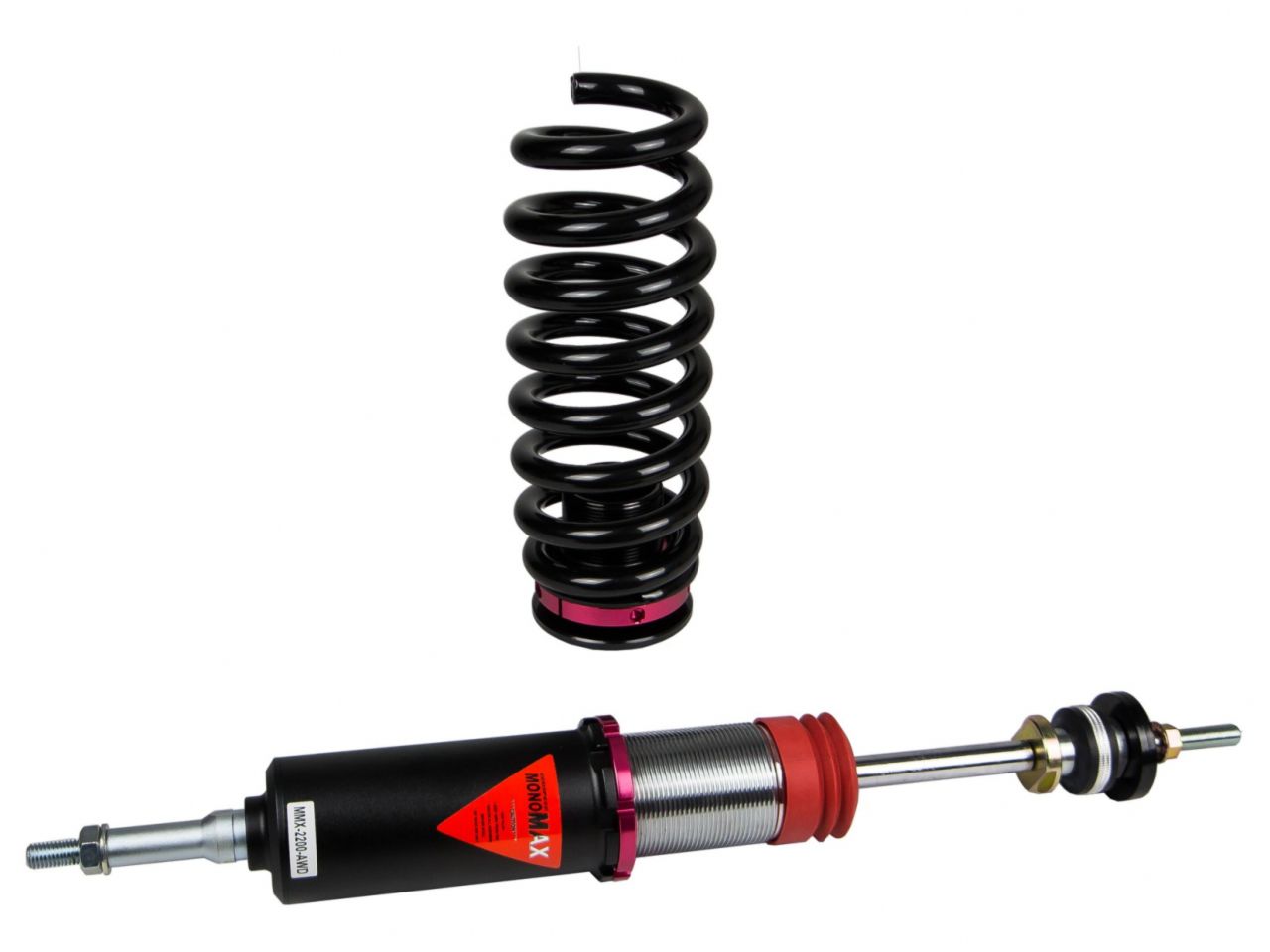

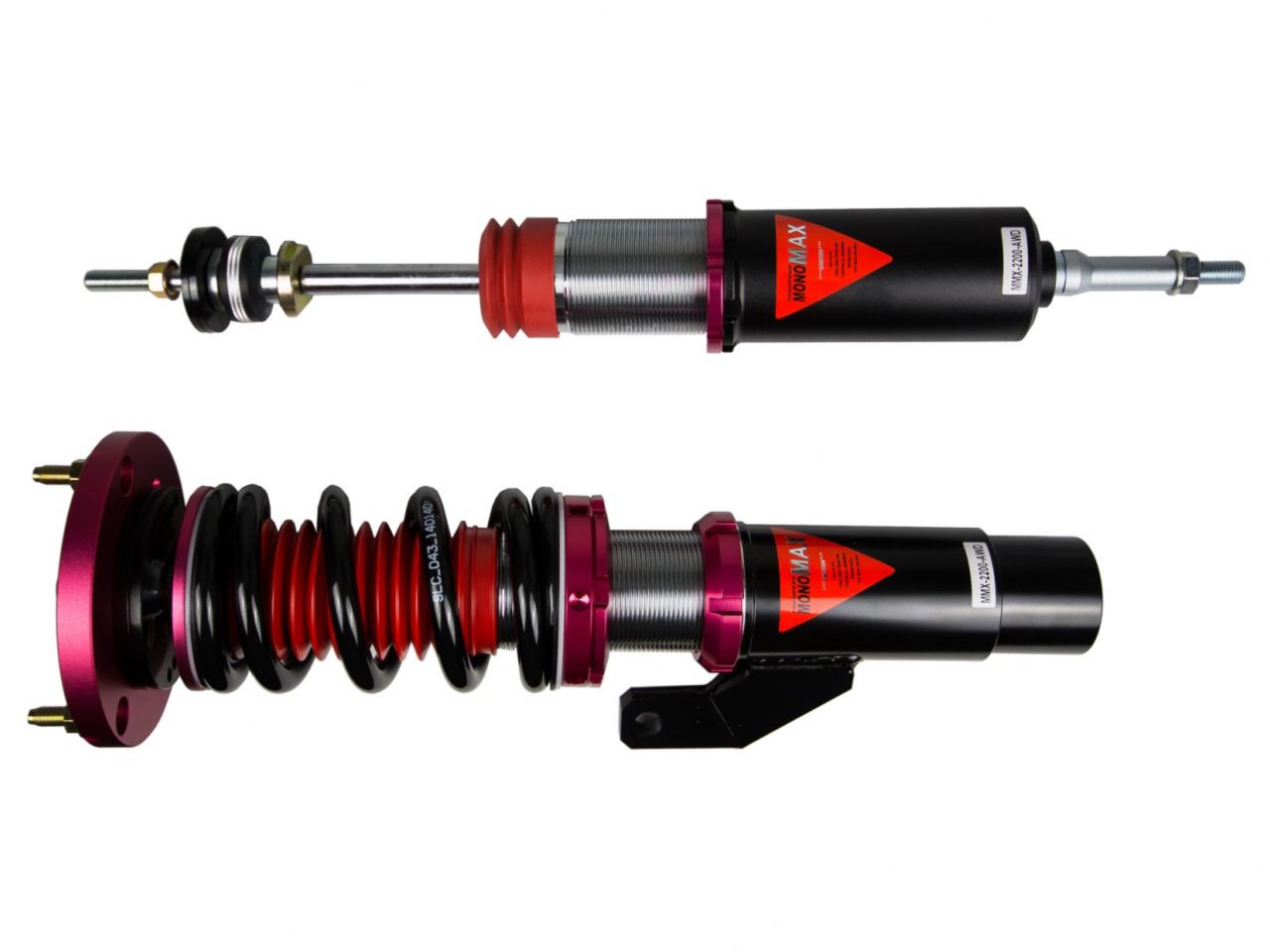

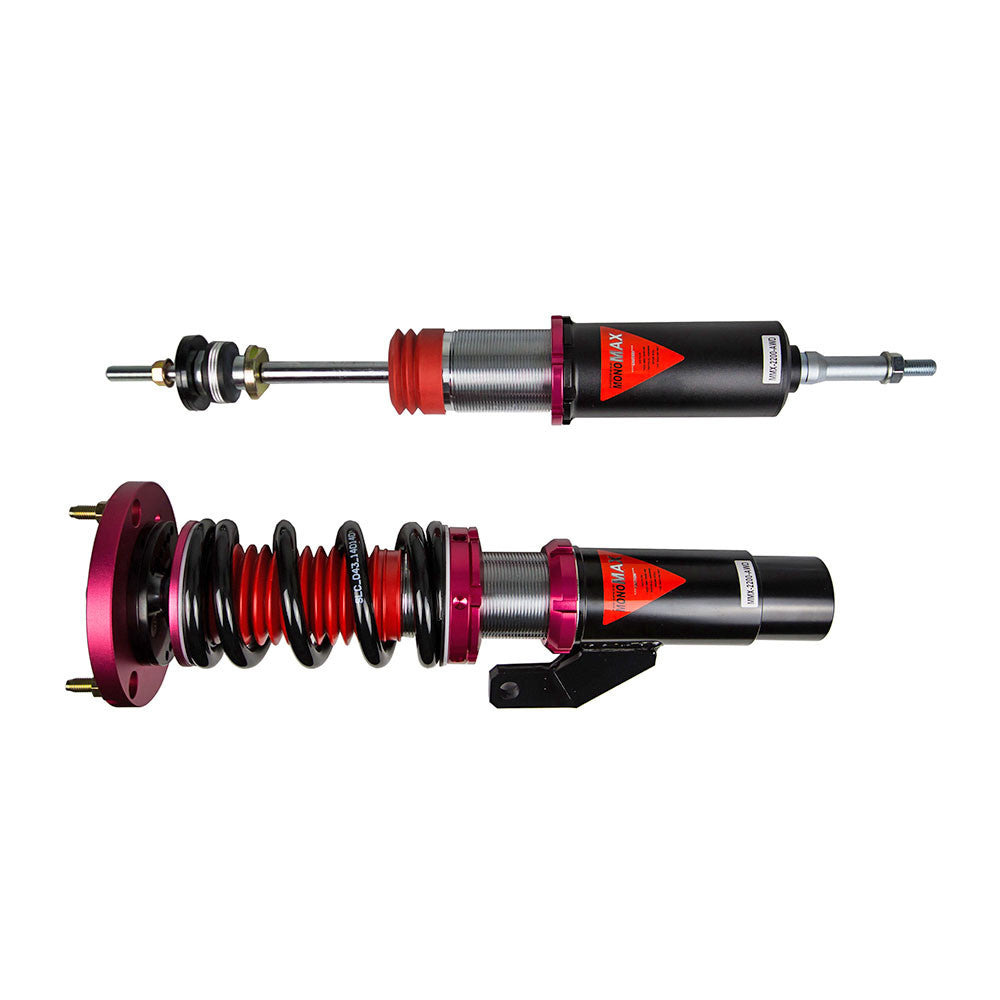

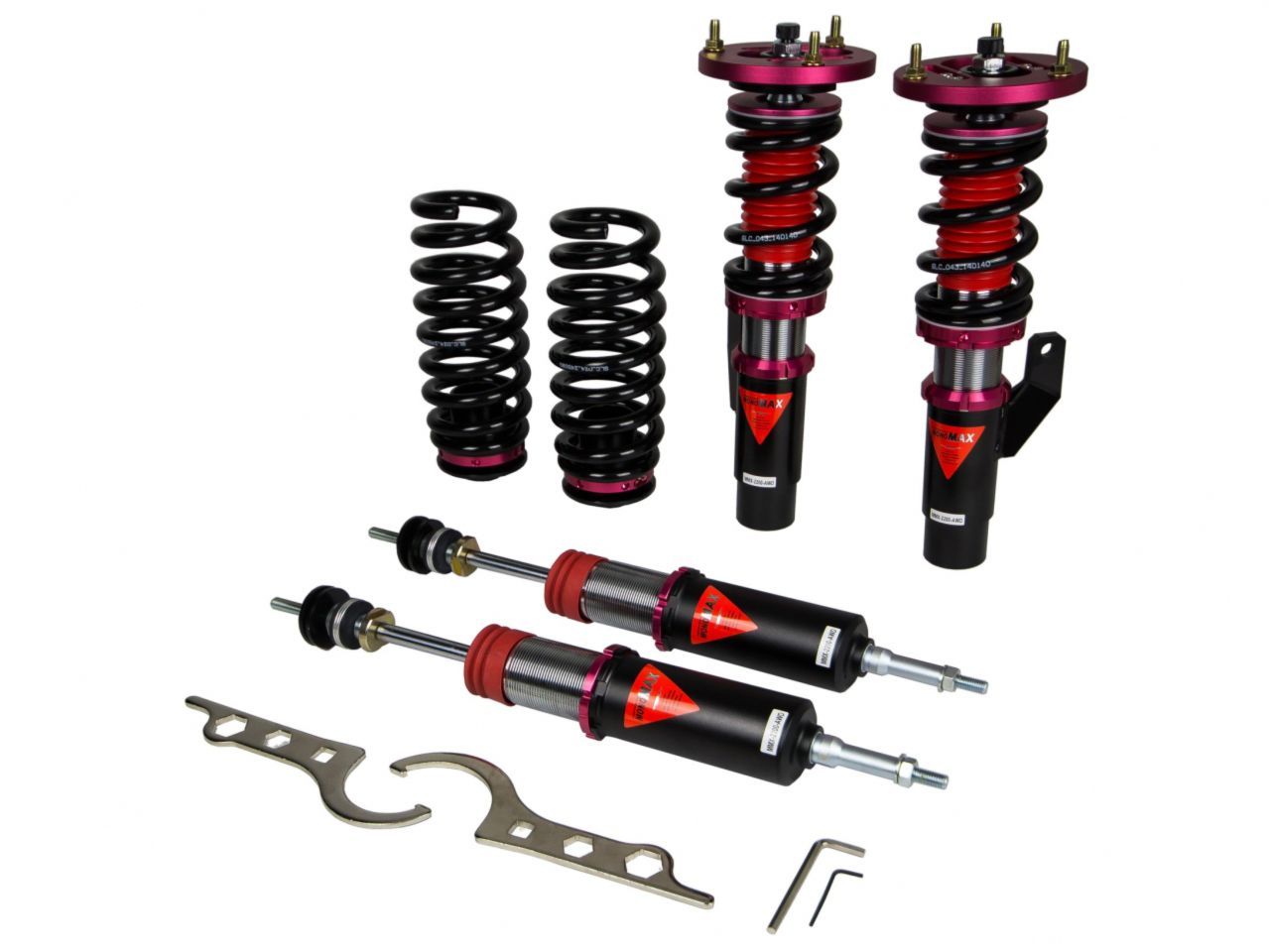

E90/E91/E92/E93, 2006-2013, MAXX
| Special Notes |
Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
| Damping Levels |
40-Level |
| Height Adjustment |
Yes |
| Spring Rate(Front) |
14 kg/mm (784 lbs/inch) |
| Spring Rate(Rear) |
9 kg/mm (504 lbs/inch) |
| Spring Length(Front) |
140 mm |
| Spring Length(Rear) |
245 mm |

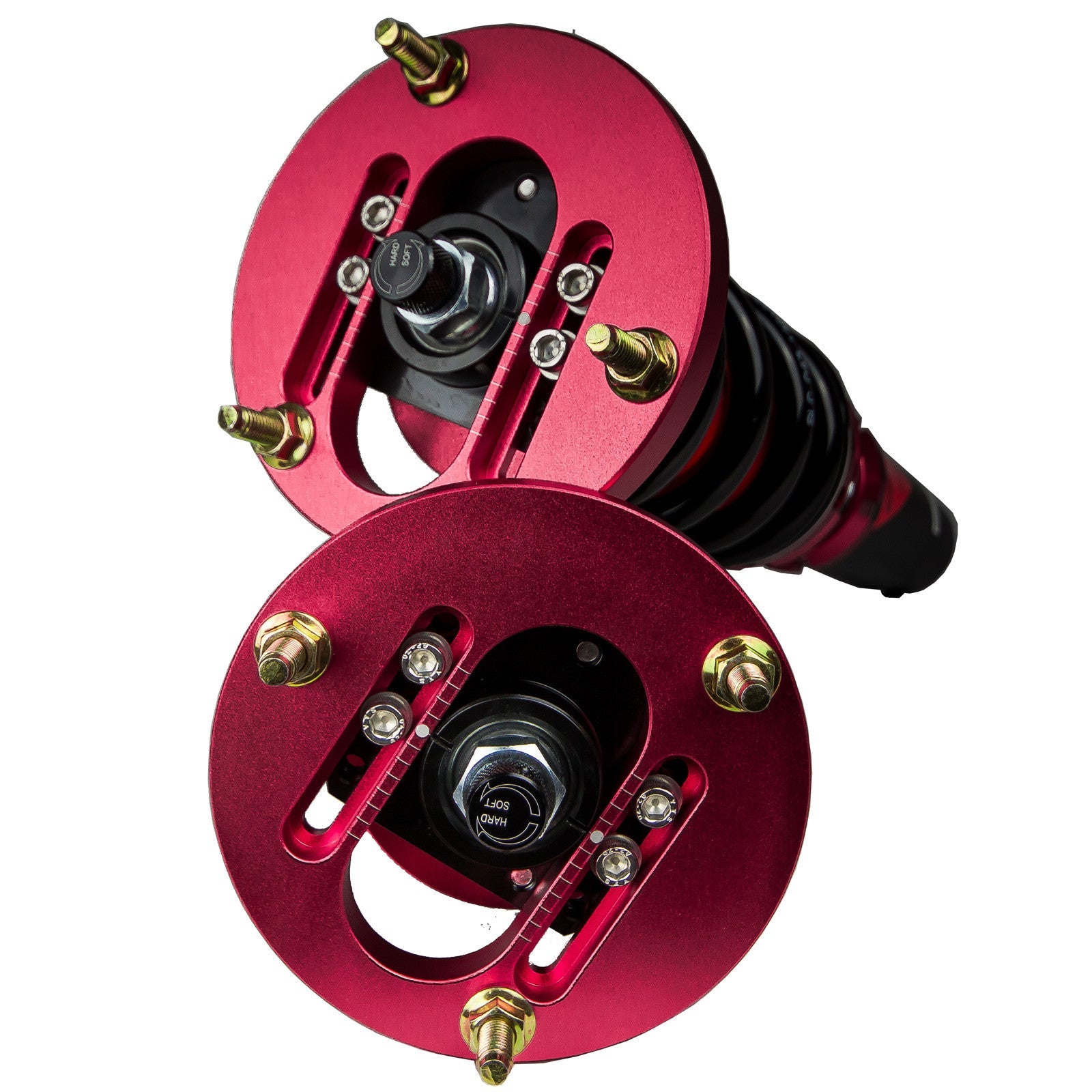

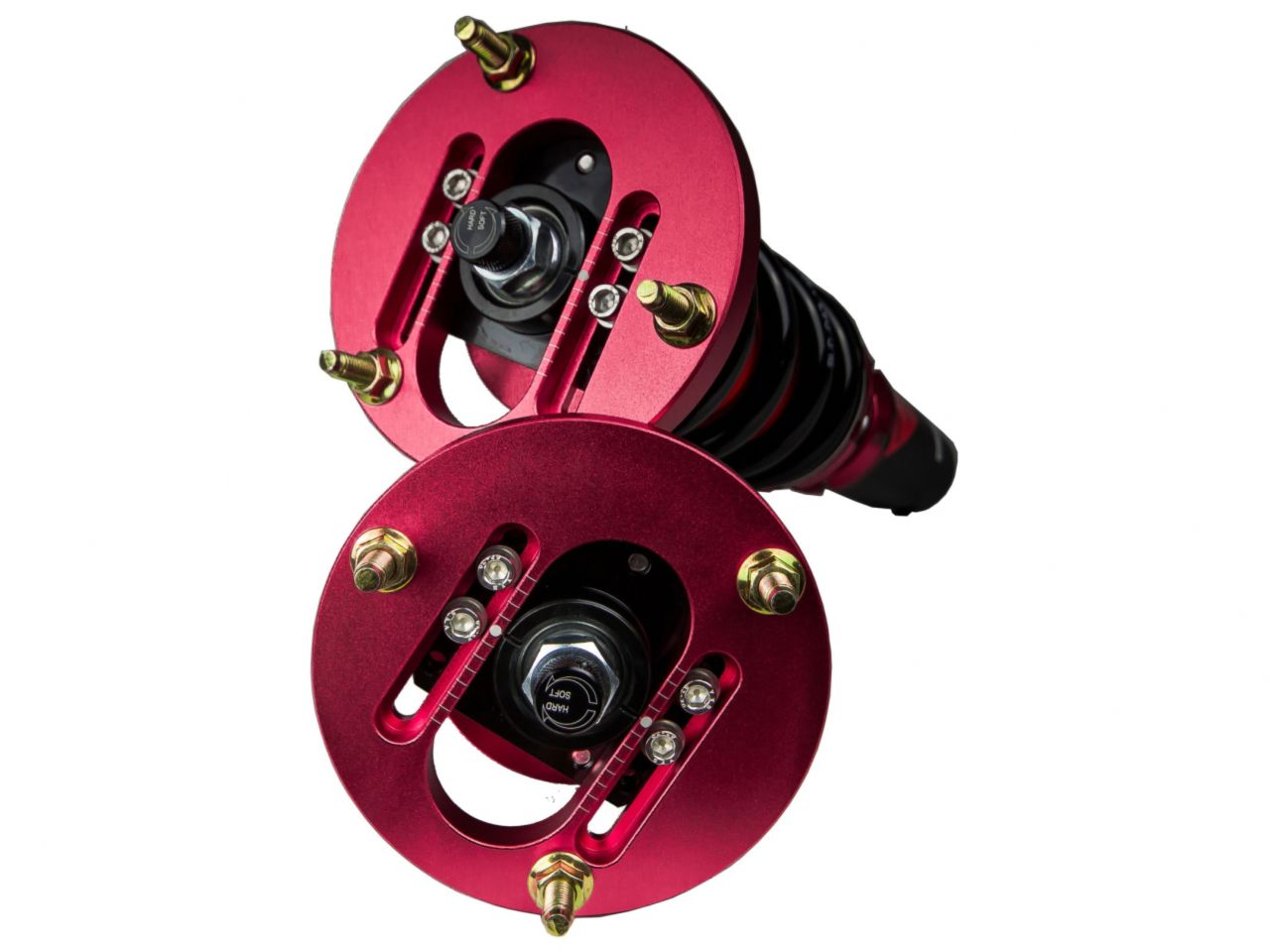

| Front Top Mount |
Yes, Pillow Ball w/ Camber Plate |

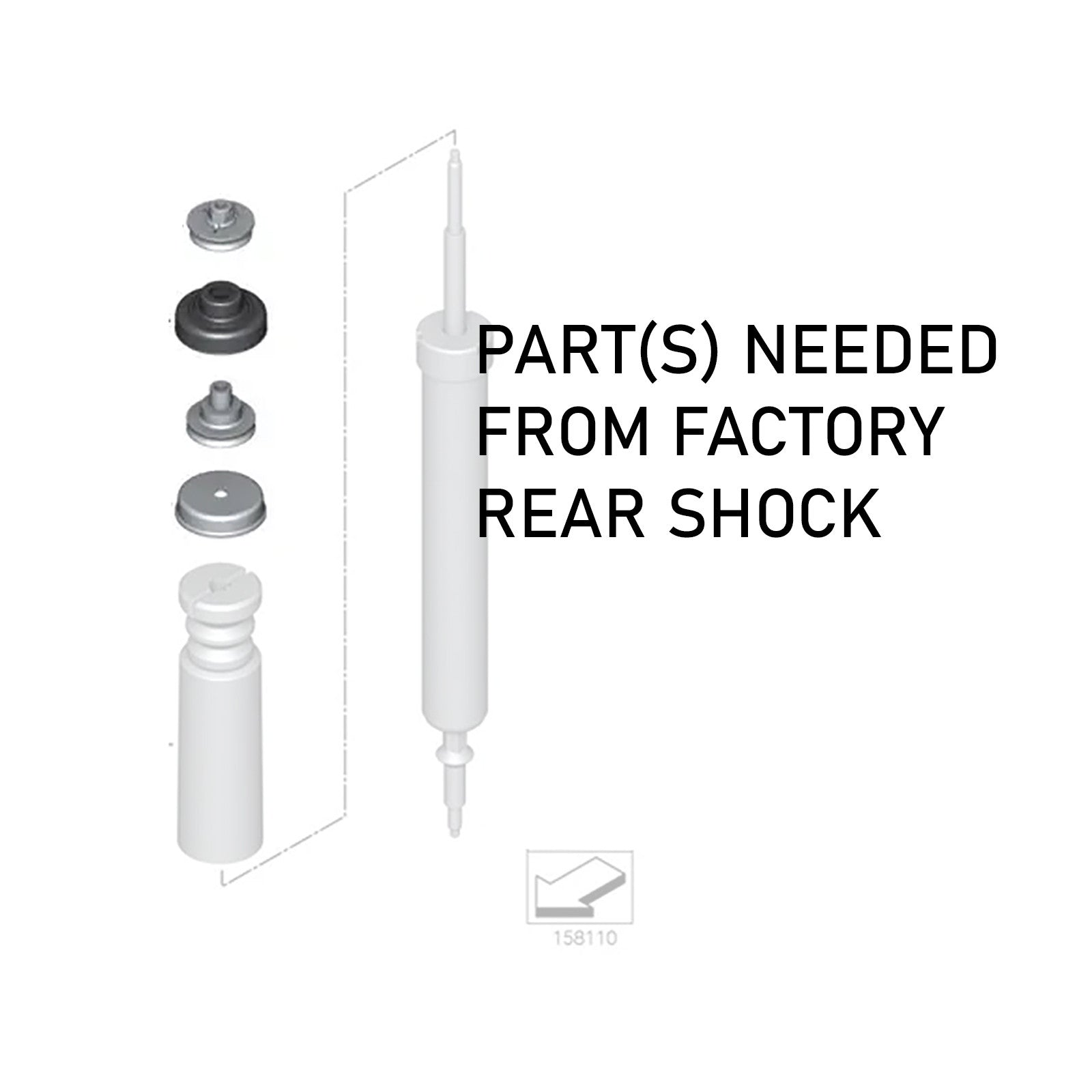

| Rear Top Mount |
No, Reuse Factory |
| Spring Inner Diameter(Front) |
62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) |
62 mm (2.44 inch) |
| Warranty Note |
No |
| User Guide |
Coilover User Guide |

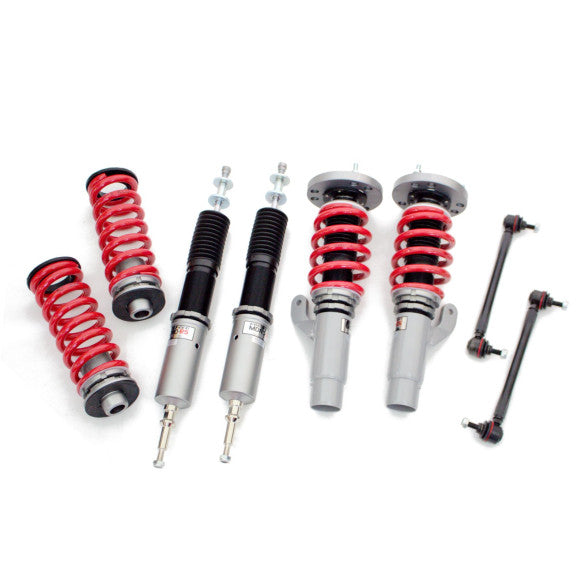

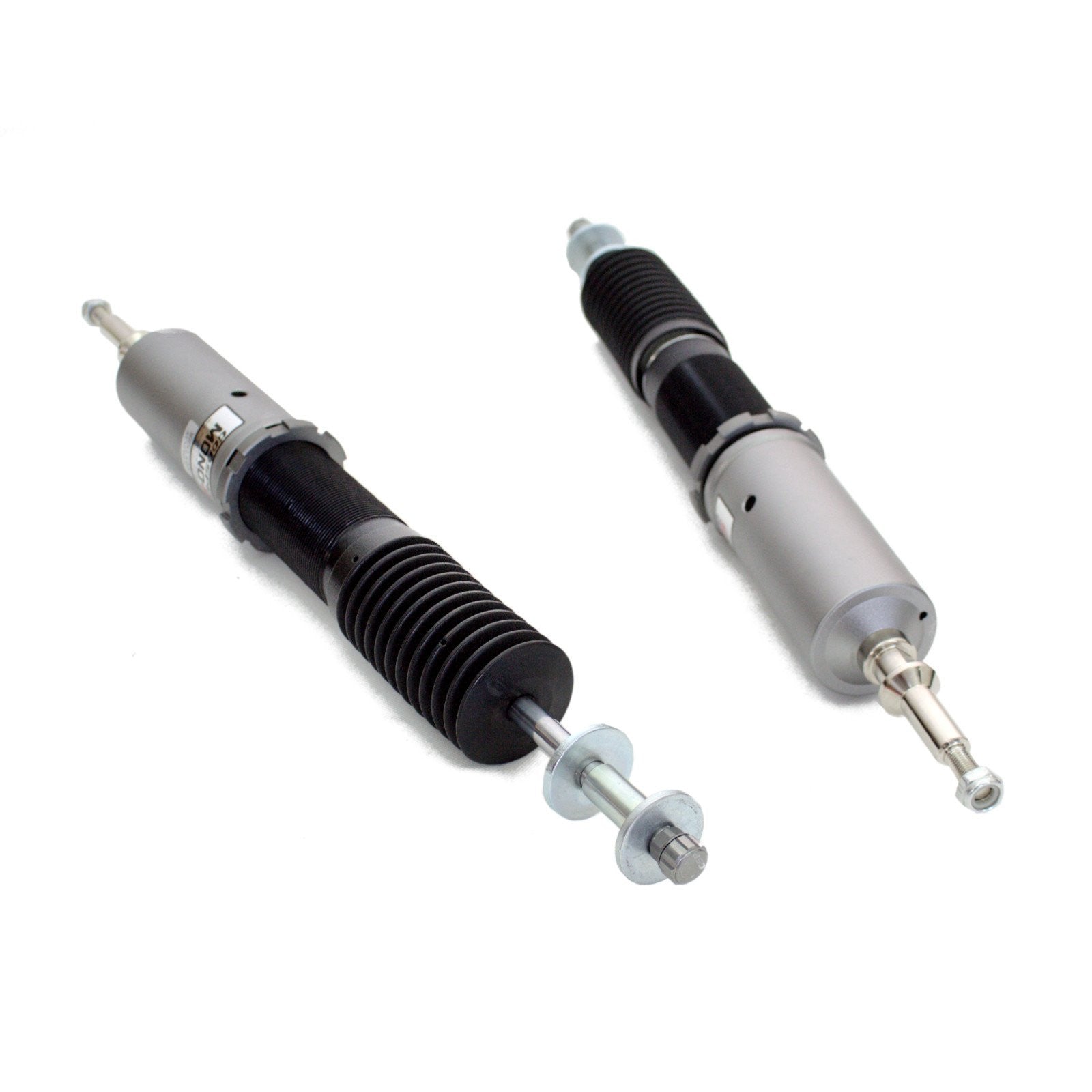

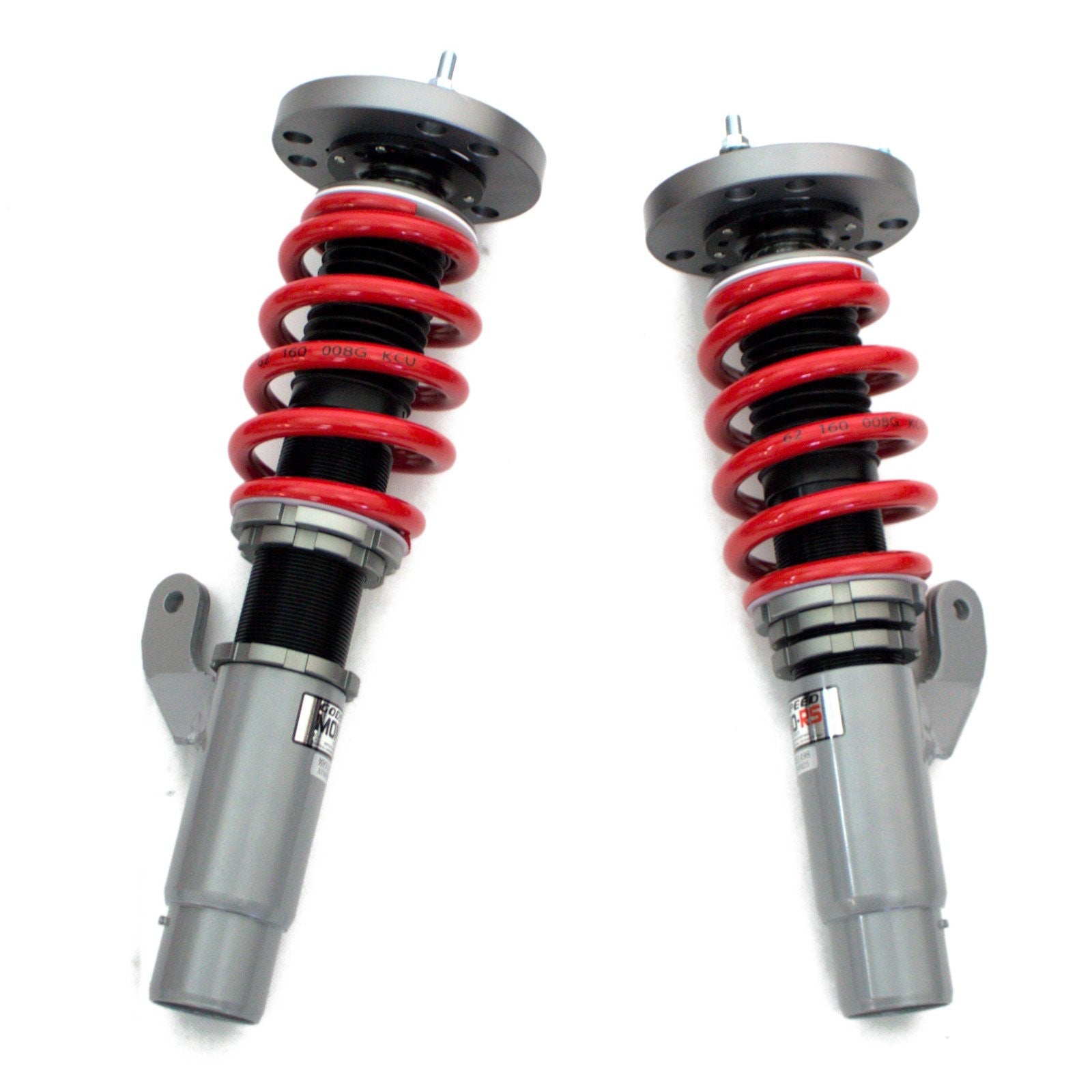

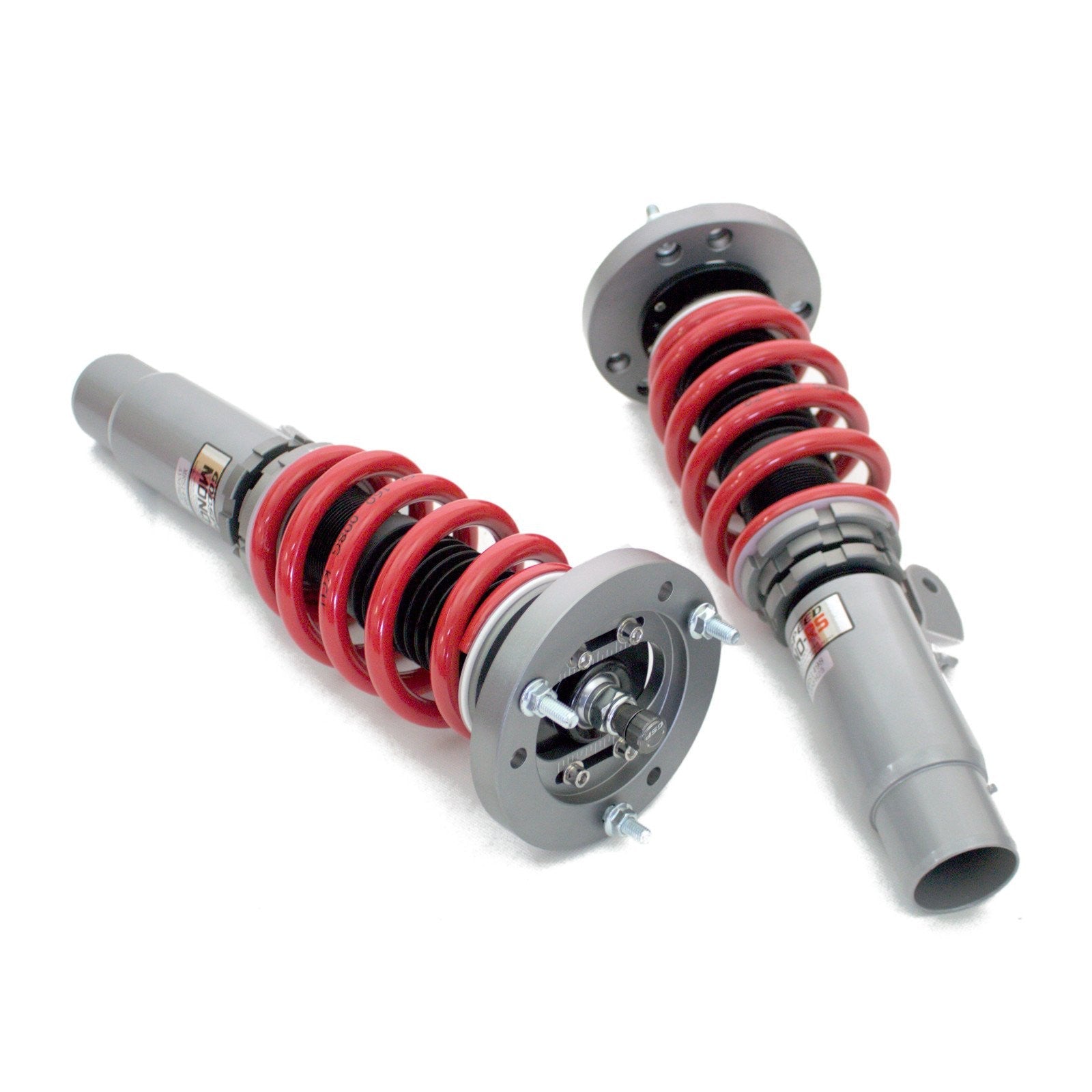

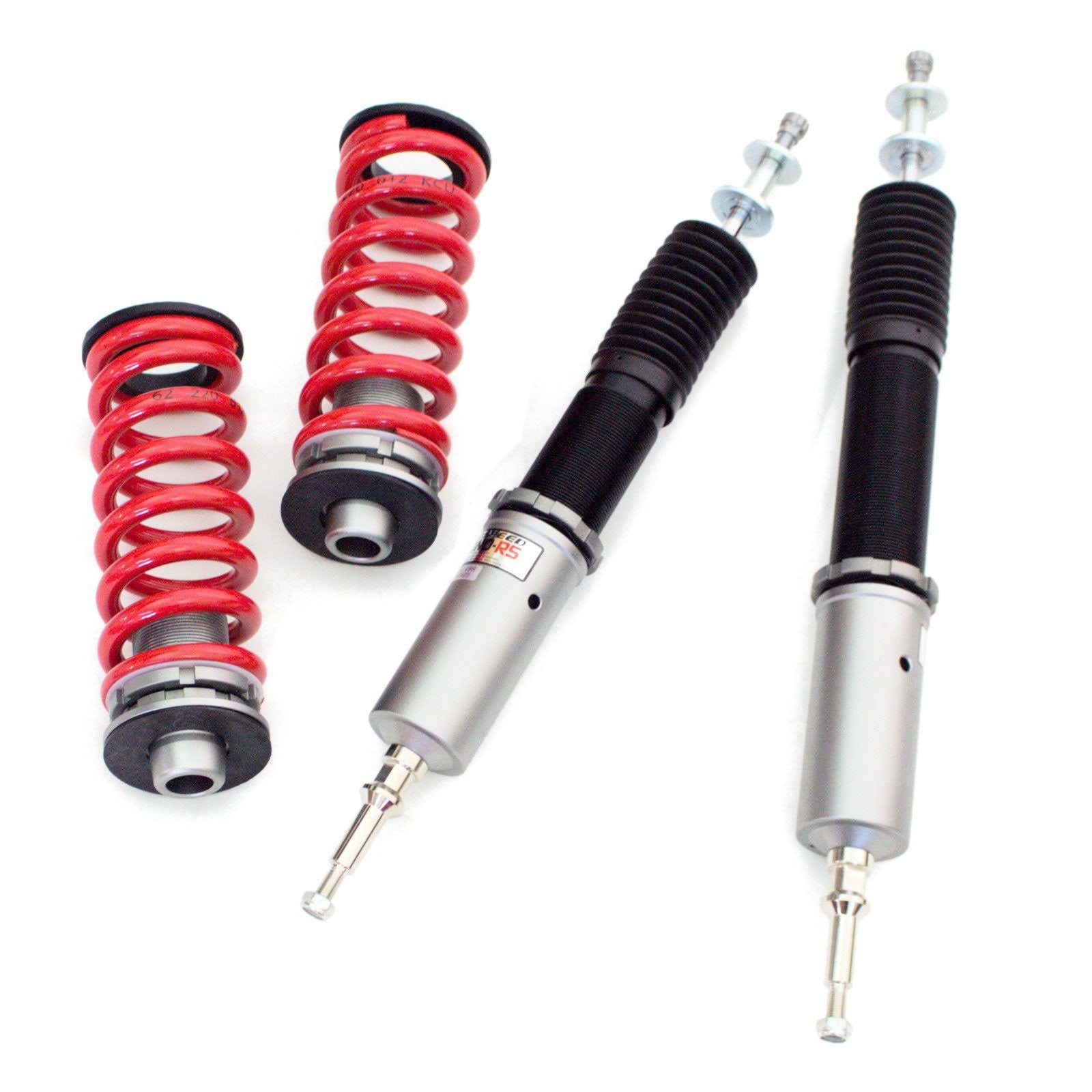

E90/E91/E92, 2007-2013, MonoRS
| Special Notes |
Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
| Damping Levels |
32-Level |
| Height Adjustment |
Yes |
| Spring Rate(Front) |
8 kg/mm (448 lbs/inch) |
| Spring Rate(Rear) |
12 kg/mm (672 lbs/inch) |
| Spring Length(Front) |
160 mm |
| Spring Length(Rear) |
220 mm |
| Front Top Mount |
Yes, Pillow Ball w/ Camber Plate |

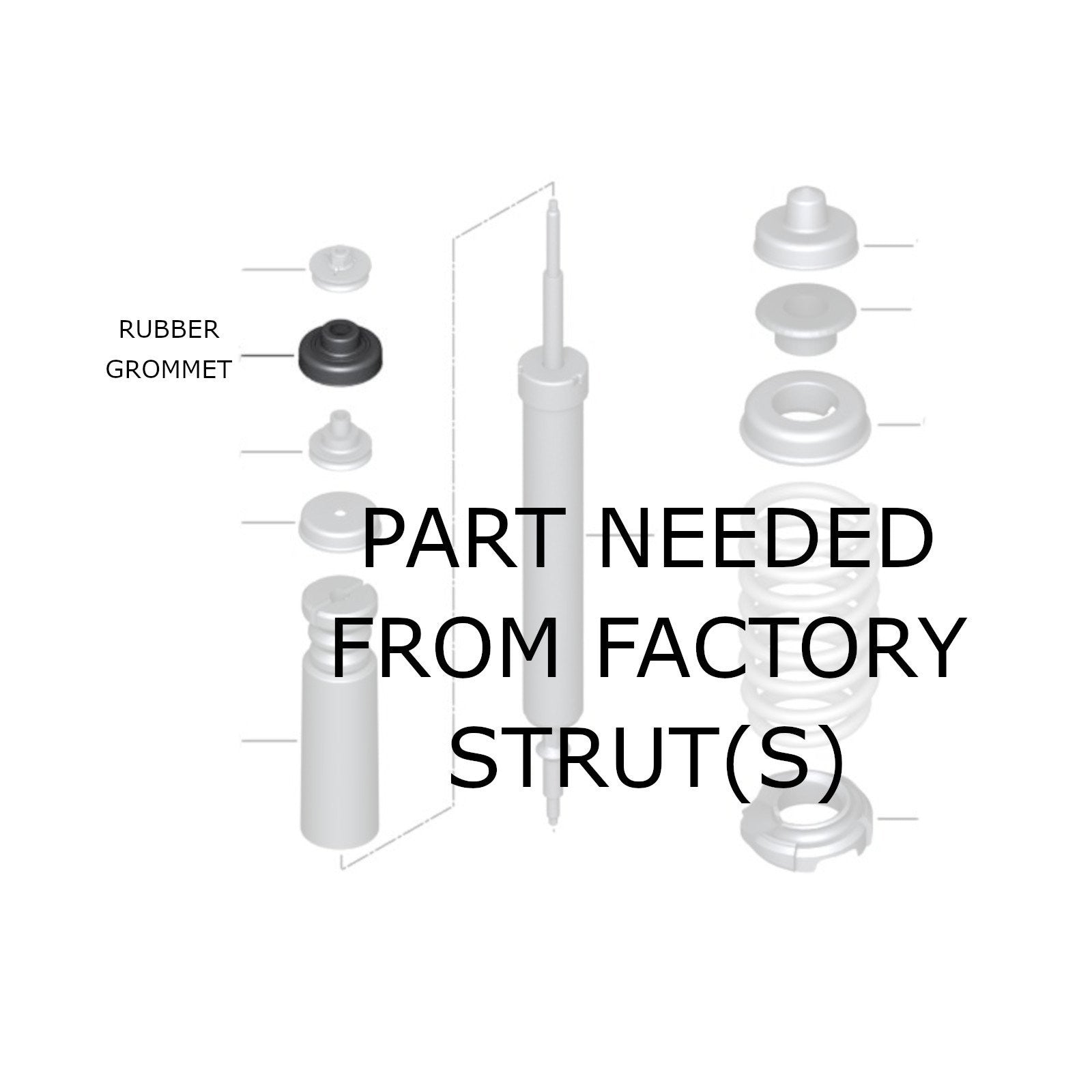

| Rear Top Mount |
No, Reuse Factory |
| Spring Inner Diameter(Front) |
62 mm |
| Spring Inner Diameter(Rear) |
62 mm |
| Warranty Note |
No |
| User Guide |
Coilover User Guide |
